Goniophotometer

The goniophotometer is dedicated for qualifaction of lighting and signaling products for automotive field.

The goniometer has 5 motorized axis :

  • 2 rotation axis for measurement (H,V)
    3 linear axis for product alignment (X, Y and Z)

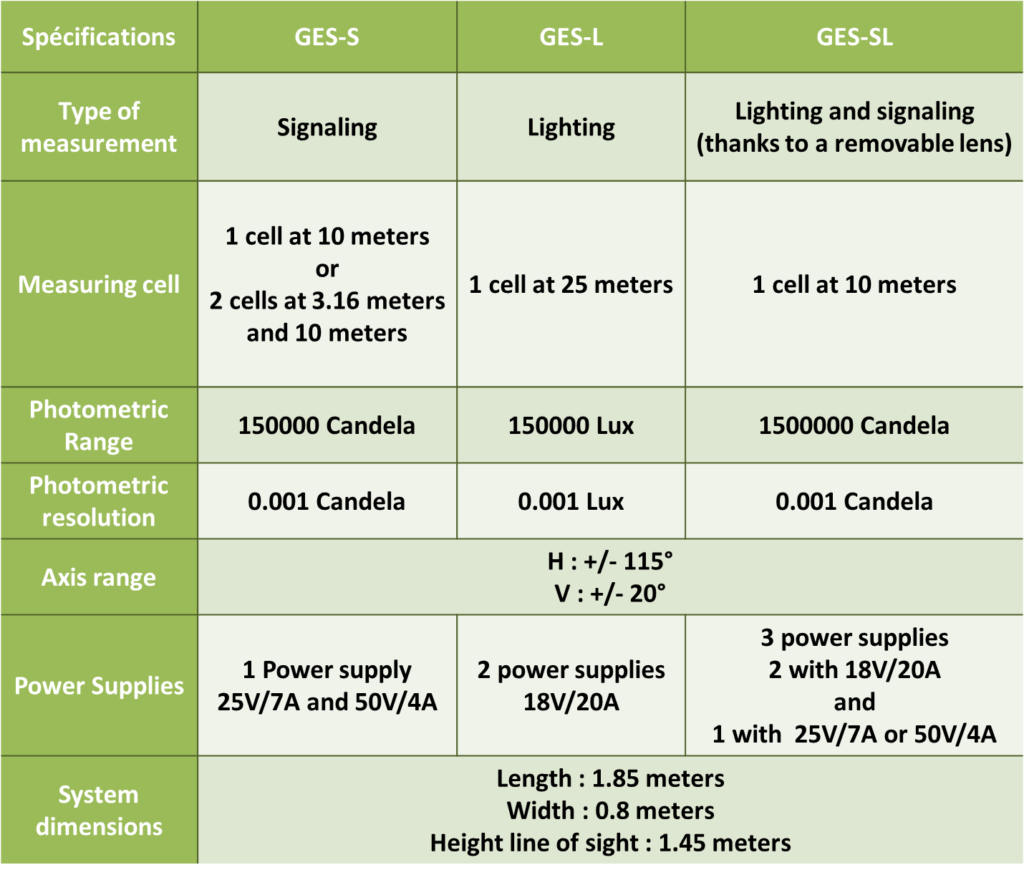

Several configurations are possible :

  • GES-S : Goniophotometer for signaling with a measurement cell at 10 meters and/or 3.16 meters.
  • GES-L : Goniophotometer for lighting with a measurement cell at 25 meters.
  • GES-SL : Goniophotometer for lighting and signaling with a measurement cell at 10 meters and a removable lens.

The system is controlled by the software ALPES developed by the company Pleiades Instruments.

GES-1024x683
Gonio1-1024x711
IMG_2698b
IMG_2709b-tiff-768x524
pleiades_03
pleiades_04

Datasheet link
